BL 09.1 - SISSI - Mat

Synchrotron Infrared Source for Spectroscopy and Imaging - Materials Science branchline (SISSI-MAT)

The SISSI infrared beamline at Elettra extracts the IR and visible components of synchrotron emission for performing spectroscopy, microspectroscopy and imaging. The applications cover a wide range of research fields, including surface and material science, biochemistry, forensics, microanalysis, geosciences, cell biology, biomedical diagnostics, microfluidics, high-pressures, time resolved IR, conservation science, protein folding, chemical kinetics etc.

The SISSI-MAT branchline, operated by CNR-IOM, is equipped with a VERTEX 70v spectrometer coupled to a Hyperion-2000 infrared microscope for spectroscopy and spectromicroscopy measurements over a broad spectral range. In particular, the possibility to mount different detectors as well as beamsplitters allows exploiting a diffraction limited beam from the visible down to the terahertz. The branchline is also equipped with a cryostat and a diamond anvil cell, thus permitting to explore the behavior of matter at extreme conditions of temperature and pressure.



Beamline Energy Resolution
5 * 10-2 [meV]
Beamline Energy Range
0.001 - 2.5 [eV]

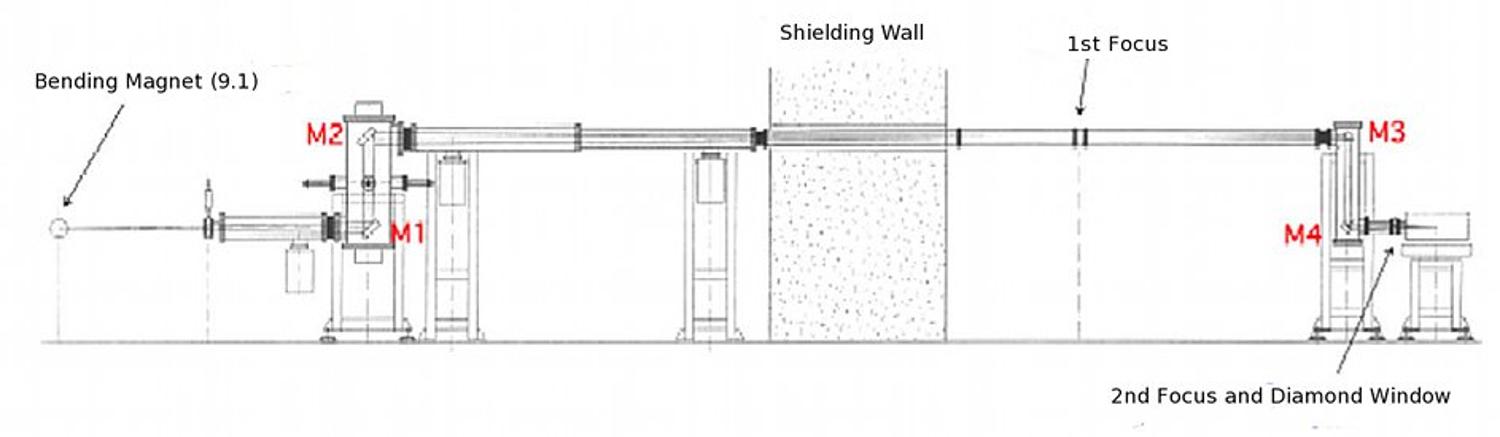

Photon Sources

BM 9.1

Type
Bending Magnet
Additional Lightsources

Globar light source

Type
Lamp
Beam shape
Flat top

Quartz-halogen light source

Type
Lamp
Beam shape
Flat top
Other Optics

Hyperion-2000 infrared microscope - Bruker Optics

Description
IR microscope coupled to the interferometer

Vertex 70v - Bruker Optics

Description
Michelson interferometer working in the spectral region from far-IR to visible in reflection and transmission modes. The Vertex 70v is coupled to a Hyperion-2000 infrared microscope.
Endstations or Setup

SISSI-MAT

Description
SISSI-MAT branchline of SISSI beamline allows investigation of matter from far infrared to visible. The beamline is equipped with a Vertex 70v Michelson interferometer coupled to a Hyperion 2000 IR microscope. Measurements can be performed in sample compartment and under the microscope, both in reflection and transmission modes. Several sample holders are available. SISSI-MAT is also equipped with a He-N2 cryostat for low temperature studies, as well as a symmetric diamond anvil cell (DAC) for studies of matter under extreme conditions. Users can bring their additional equipment (e.g., resistive heating system, their own DACs, etc...).
Microscopes
Hyperion 2000 infrared microscope - Bruker Optics
Spectrometer
Vertex 70v Michelson interferometer - Bruker Optics
Detectors Available
Bolometer
MCT
Si
DTGS
DLaTGS
Endstation Operative
Yes

Sample

Sample Type
Crystal, Amorphous, Fiber, Powder, Liquid, Other:
Detectors

Bolometer

Type
General Purpose 4.2K bolometer system with 3 position filter

Detection

Detected Particle
Electron

DLaTGS

Type
Pyroelectric Deuterated Lanthanum α-Alanine doped Triglycine sulphate, room temperature

Detection

Detected Particle
Electron

DTGS

Type
Pyroelectric Deuterated Triglycine sulfate detector, room temperature

Detection

Detected Particle
Electron

MCT

Type
Photoconductive nitrogen-cooled Mercury Cadmium Telluride (HgCdTe) detectors

Detection

Detected Particle
Electron

Si

Type
Si photodiode detector, room temperature

Detection

Detected Particle
Electron
contacts
Michele Zacchigna
Stefano Lupi
Veronica Stopponi
Techniques
Absorption
  • IR spectroscopy
Imaging
  • IR Microscopy
Disciplines
Chemistry
  • Other - Chemistry
Earth Sciences & Environment
  • Geology
  • Mineralogy
  • Other - Earth Sciences & Environment
  • Water sciences/Hydrology
Engineering & Technology
  • Other - Engineering & Technology
Life Sciences & Biotech
  • Other - Life Sciences & Biotech
Material Sciences
  • Knowledge based multifunctional materials
  • Other - Material Sciences
Physics
  • Atomic & molecular physics
  • Hard condensed matter - electronic properties
  • Matter under extreme conditions, warm dense matter, plasmas
  • Optics
  • Other - Physics
  • Quantum electronics & optics
  • Surfaces, interfaces and thin films
control/Data analysis
Control Software Type
  • OPUS 7.2 - Bruker proprietary software
Data Output Type
  • Single files containing spectral data and information on acquisition: spectral range, resolution, number of scans, source, beamsplitter, detector type, scanner velocity, aperture
Data Output Format
  • OPUs, txt
Equipment That Can Be Brought By The User
Resistive heating system for DAC
