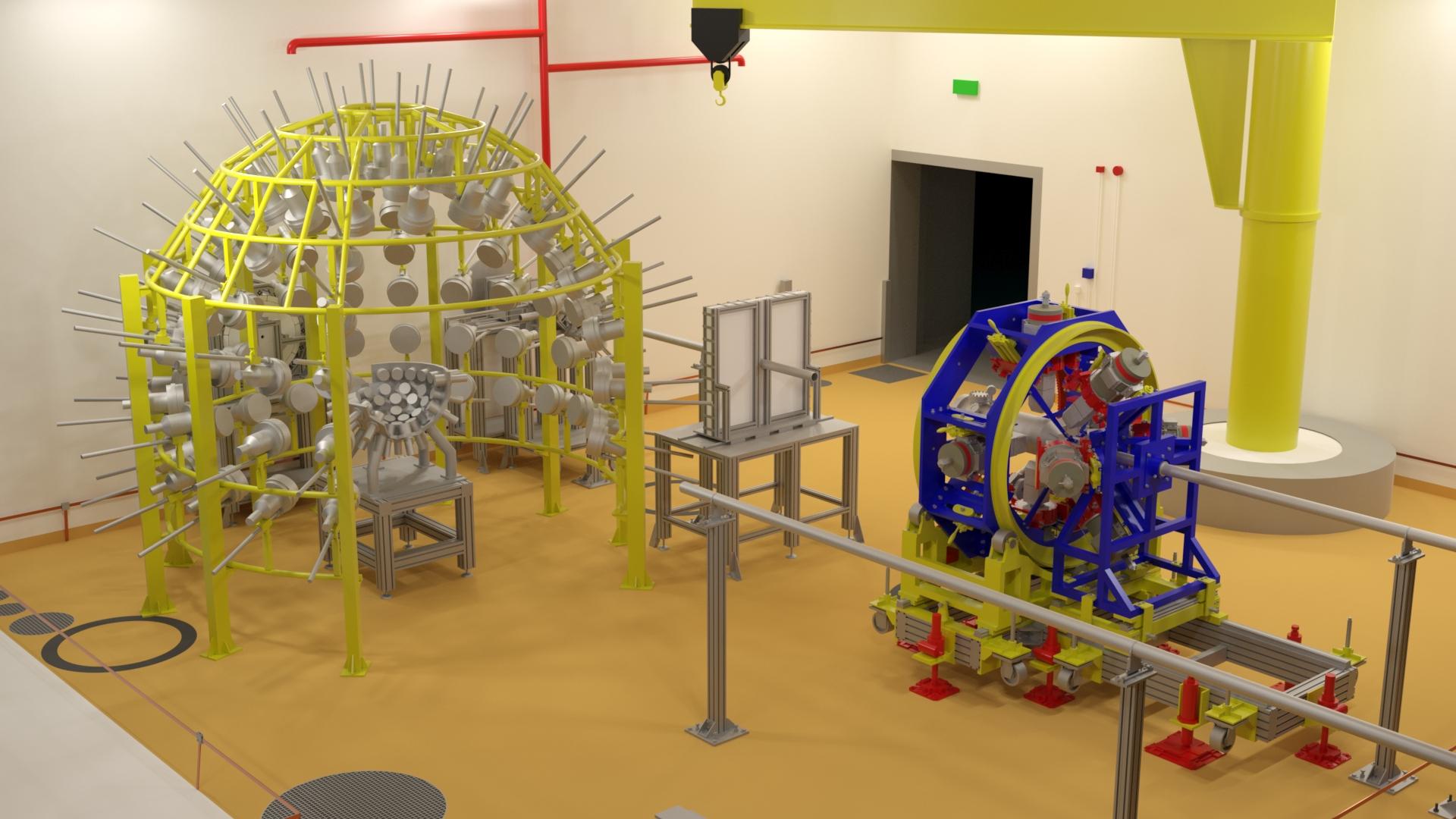

The E8 is an experimental hall where experiments could use either low-energy or high-energy gamma beams. One experimental location on both the low and high energy lines is occupied by the ELIADE array while on the high-energy line the remaining space is occupied by the GANT-GN array. There are designated diagnostics stations on both gamma beamlines.



Detectors

ELIADE

Description
The ELIADE (ELI-NP Array of DEtectors) is composed of 8 segmented clover HPGe detectors and additional 4 LaBr3 detectors. The detectors are located on two rings, one at 90 degrees and the other at 135 degrees with respect to the beam axis. The angle of the detectors in the first ring can be varied with 4 degrees around the nominal working position. [Romanian Reports in Physics, Vol. 68, Supplement, P. S483–S538, 2016]
Time Resolved
Yes
Passive or Active (Electronics)
Active

Detection

Detected Particle
Photon

ELI-BIC

Description
The ELI-BIC (Bragg Ionization Chamber) is an assembly of four chambers, each of which contains one high-efficient double-sided Frisch-grid ionization chamber for the detection of binary fission fragments together with eight ∆E-E telescopes to measure light charged particles. Each telescope consists of an ionization chamber and a double-sided silicon strip detector (DSSD) to determine energy loss and remaining energy, respectively. As counting gas, P-10 (90% argon, 10% methane) at around 1 bar will be used. As purpose of this detector array the measurement of fission fragment properties as well as ternary fission probabilities can be mentioned.
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

ELISSA

Type
The Extreme Light Infrastructure Silicon Strip Array (ELISSA) will consist of 3 rings of 12 X 3 position-sensitive detectors produced by Micron Semiconductor Ltd., in a barrel like configuration. To extend the angular
coverage an end cap detectors assembly consisting of four QQQ3 segmented detectors by Micron Semiconductor Ltd will be used. So that, the final design of ELISSA will ensure very good resolution and granularity in a compact detection system covering almost 80% of the total angular range.
Time Resolved
Yes
Passive or Active (Electronics)
Active

Detection

Detected Particle
Photon

ELITHGEM

Description
This array consists of 12 detectors of THGEM (THick Gas Electron Multiplier) type, which offer position sensitivity as well as high gain. The entire detector covers a solid angle of around 80% of 4π and each THGEM unit, together with a segmented readout electrode, provides a true pixelated radiation localization with an angular resolution of about 5°. The array is contained inside a gas chamber, filled with isobutane gas at a pressure of around 5 mbar. ELITHGEM is dedicated e.g. to the measurement of cross sections and fission fragment angular distributions.
Passive or Active (Electronics)
Active

Detection

Detected Particle
Electron

ETPC

Description
The ELI Time Projection Chamber (ELITPC) is a gaseous detector in which the gas acts at the same time as a target for the nuclear reaction and detection medium. The detector will be used to investigate the multi alpha-particle decay of light nuclei such as 12C and 16O and the cross section of photo-dissociation reactions (γ,p) or (γ,α).
The active volume of the chamber, in which the reaction happens and the decay products are detected, will have a length of 35 cm and a square cross-section of 20 cm × 20 cm, centred around the beam axis with a window for the gamma beam and another on the side for an alpha source.
The multiplication of the drifting electrons will be achieved by a sequence of 35 cm × 20 cm Gas Electron Multiplier (GEM) foils. The charge will be read by a u-v-w readout which is mounted on a circuit board using multi-layering board technology, as shown, and it is formed by three layers of (u-v-w) grids crossed at 60°.
Combination of the 2D position in the collection plane with time information will allow the 3D reconstruction of the reaction products. The 3D reconstruction of events will also allow us to identify reactions in which more than two particles are involved, like 12C(γ,3α), or when more events (including background) happen within a short time-window of the information collection.
Time Resolved
Yes
Passive or Active (Electronics)
Active

Detection

Detected Particle
Ion

GANT

Time Resolved
Yes
Passive or Active (Electronics)
Active

Detection

Detected Particle
Photon

IGISOL

Description
The ELI-IGISOL facility will produce radioactive ion beams (RIBs) via photofission in a stack of actinide targets placed at the center of a gas cell. This Cryogenic Stopping Cell (CSC) will operate with helium at around 75K and will employ diverse DC and RF electric fields to thermalize and drift out quickly the fission fragments. A Radio-Frequency Quadrupole (RFQ) will form the RIBs by cooling, bunching and mass filtering these fragments. The exotic neutron-rich component of the RIBs will be selected by a Multiple Reflection Time-of-Flight (MR-ToF) mass spectrometer with high resolving power. Finally, the selected rare and exotic nuclei will be analyzed by a beta-decay tape station and a collinear laser spectroscopy station. This project is a collaboration between ELI-NP and several international institutes with broad experience in this field. Most notably, the expertise developed by the GSI institute and the Giessen University at the Ion Catcher facility will be extended in the joint development of the CSC, RFQ and MR-ToF devices, while the expertise developed at the IPN Orsay institute for measurement stations like those mentioned above will be employed in the joint development of those planned at ELI-IGISOL.
Time Resolved
Yes
Passive or Active (Electronics)
Active

Detection

Detected Particle
Ion
Support Laboratories

Electronics laboratory

Description

The Electronics laboratory offers several services associated to this specific field of activities such as the maintenance of equipment, repairs, technical support for preparing and performing experiments. The laboratory is equipped with machines that can be used for the measurements of electrical parameters in Physics and applied Electronics at ELI-NP. Therefore the design and development of prototypes (in small quantities), electronics’ modules, adaptors or simple automation devices can be done properly. These activities serve for the research, in general, as well as for supporting the experiments or the utilities present at ELI-NP. The measurements made in this laboratory can be of help when it comes to investigating potential malfunctions on devices that are to be used in experimental set-ups as well as the checkup of homemade system/device.

For the abovementioned activities, we can find the following corresponding devices in the laboratory:

  • Oscilloscopes (500MHz, 2.5 Gs/s)
  • Signal and Functions generator
  • Power supplies
  • Welding workstations for THT and SMD components
  • Multimeters
  • Various probes
  • Microscope
  • RLC bridges
  • Small electronic and electrical components such as resistors, potentiometers, capacitors, transistors, diodes, LEDs, integrated circuits, relays, voltage regulators, buzzers, etc.
  • Various cables for power or transmission of data (e.g. coaxial cables)
